Overview
MotionUAV P400 and P900 Radio is a new line-of-sight drone data link communication module from MotionUAV. It features high power, high speed, and high receiver sensitivity, making it ideal for use in UAV datalink drone communications systems. For the ultimate solution in design and flexibility and cost/size sensitive applications, consider the MotionUAV Series P400 radio platform based on Microhard Pico Series. Offering selectable ISM 900MHz & Licensed 400MHz modes, in a single module, this Radio Telemetry Module provides an economical solution. Consult MotioUAV Online Shop to see the full range of our products.
Features of this Long Range Module
- Supports up to 345 kbps (@ 900MHz)
- Software Selectable 400 MHz & 900 MHz Bands.
- Quad Filter Stage provides Extreme Noise & Interference Rejection
- Point-to-Point, Point-to-Multipoint, Store & Forward Repeater
- Industrial Temperature (-55C to +85C)
- Maximum allowable transit power (Adjustable)
- Low Power consumption in Sleep and Sniff modes (Future)
- 32 bits of CRC, selectable Forward Error Correction with retransmission
- Separate diagnostics port—transparent remote diagnosis and online network control
- Compatible with some GPS Radio Transceivers
- Microhard compatibility with 920F
MotionUAV P900 V2 Specification
| Feature | Specification |
|---|---|
| Frequency | 902–928 MHz |
| Spreading Method | Frequency Hopping |
| Forward Error Detection | Hamming BCH Golay Reed-Solomon |
| Error Detection | 32-bit CRC, ARQ |
| Encryption | Optional (AES) |
| Range | 40 miles (60 km) |
| Sensitivity (@10⁻⁴ BER) | −114 dBm @ 57.6 kbps −112 dBm @ 115.2 kbps −109 dBm @ 172.8 kbps −107 dBm @ 230.4 kbps |
| Output Power | 100 mW – 1 W (20–30 dBm) |
| Serial Interface | 3.3V TTL |
| Serial Baud Rate | Up to 230.4 kbps (asynchronous) |
| Link Rate | 57.6 to 276 kbps |
| Operating Modes | Mesh, Auto Routing, Store & Forward, Self Healing, Packet Routing Modes |
| Blocking | ±1 MHz > 55 dBc ±2.5 MHz > 60 dBc ±5 MHz > 65 dBc >930 MHz > 70 dBc <890 MHz > 70 dBc |
| Power Consumption (3.3V ±0.3V @ 1W) | Sleep: <1 mA Idle: 3.5 mA Rx: 45–98 mA Tx: 1000–1400 mA |
| Connectors | Antenna: RP-SMA Female Bulkhead Data: DB-9F |
| Environmental | −55°C to +85°C |
| Weight | 90 g |
| Dimensions | 51 × 74 × 25 mm |

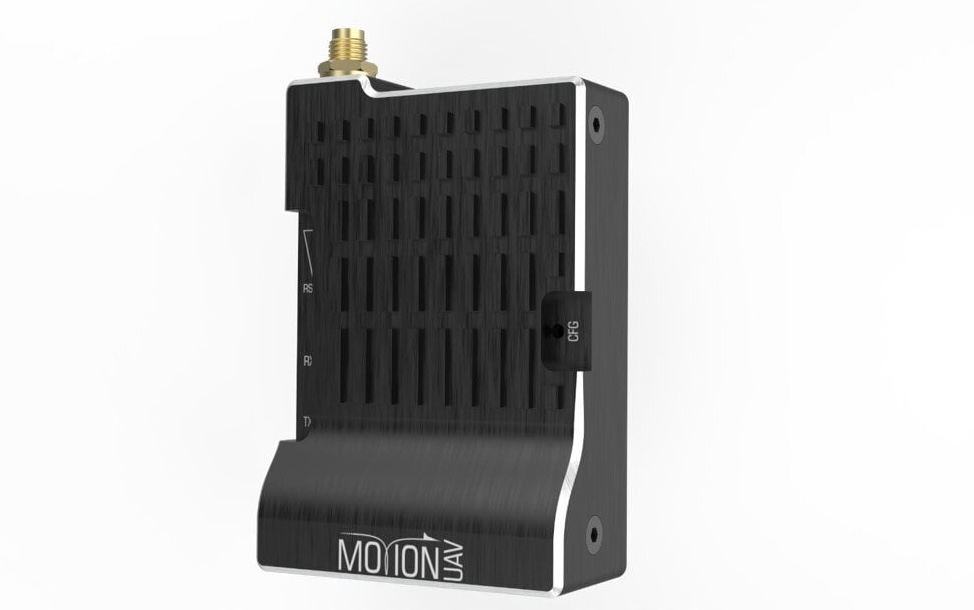

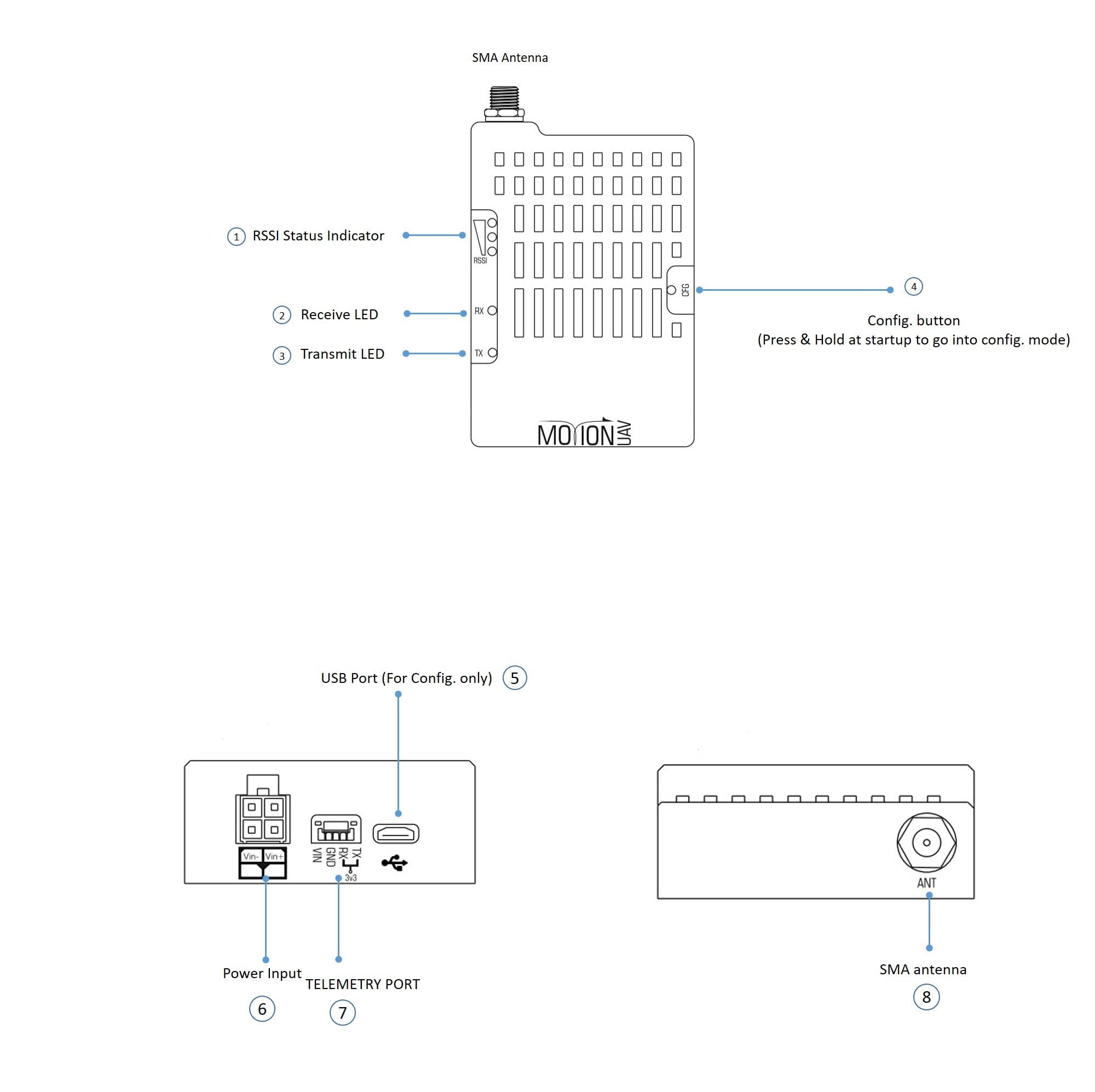

Pin Out

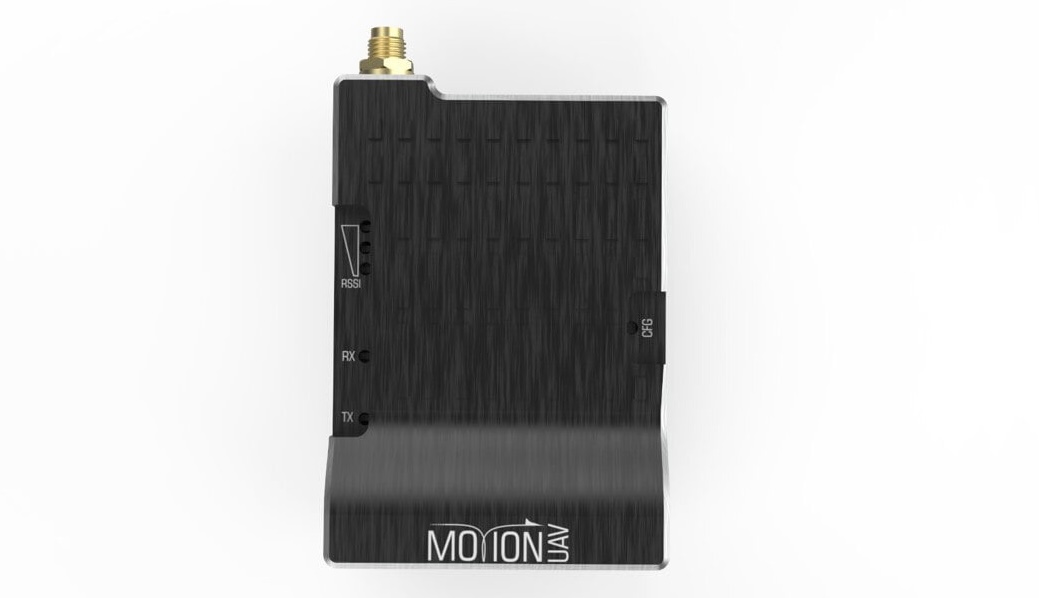

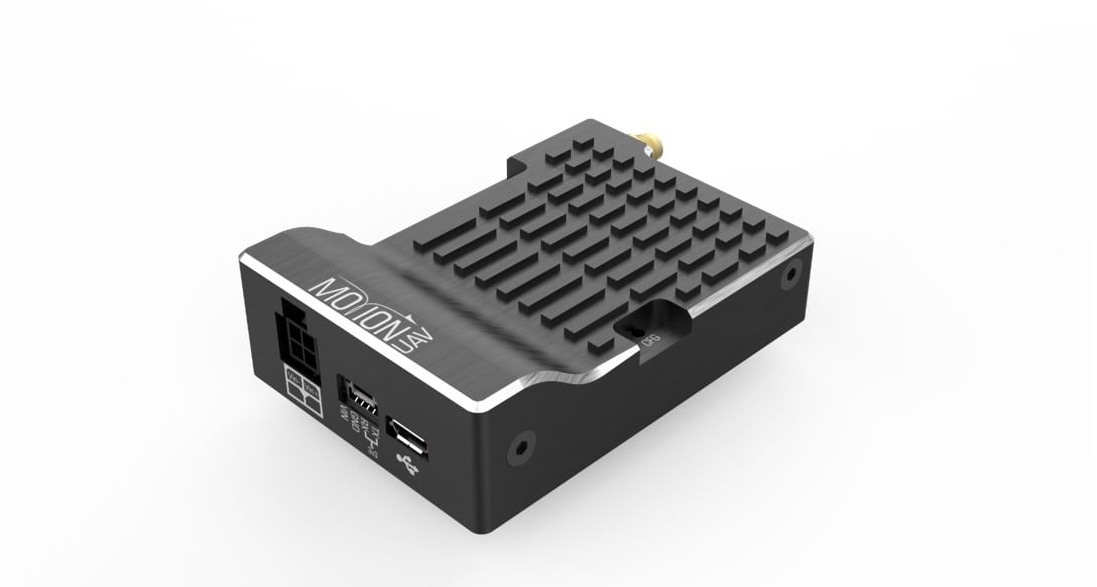

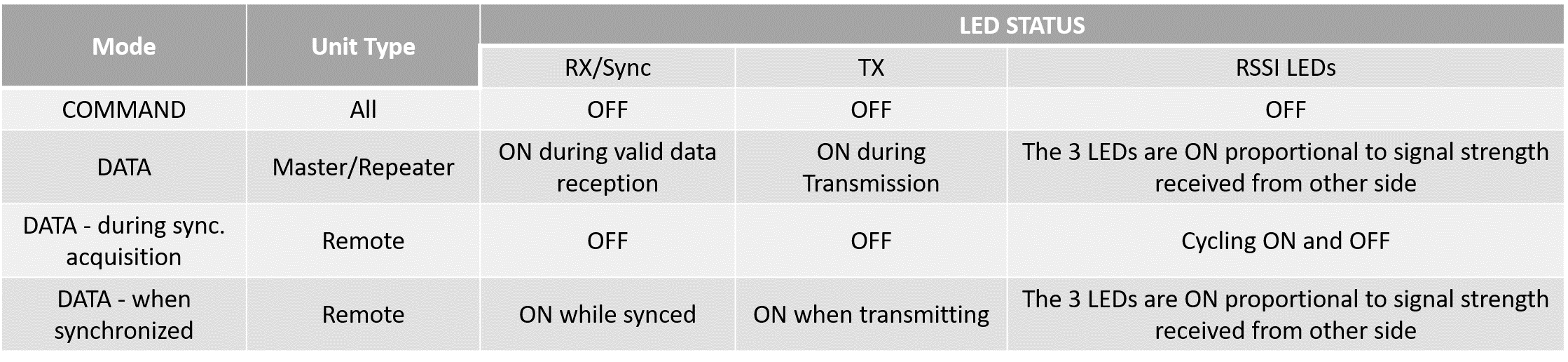

1-Receive Signal Strength Indicators
2-This LED indicates that the modem is synchronized and has received valid packets
3-When illuminated, this LED indicates that the modem is transmitting data over the air
4-Holding this button while powering up the modem will boot the unit into COMMAND mode: the default serial interface will be active and temporarily set to operate at its default serial settings of RS232 and 9600/8/N/1
5-USB Port for configuration of the module. Only available on new versions

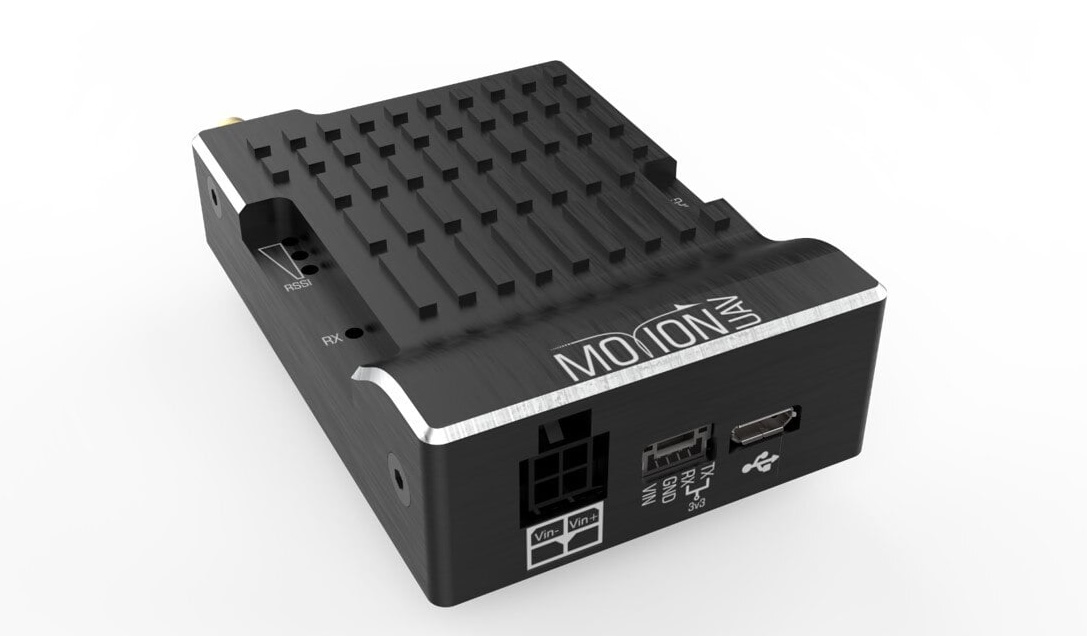

6-Vin /Vin– is used to power the unit. The input Voltage range is 9-30 Vdc with at least 1A current requirement
7-Data Serial interface for connection to a PC (using a Serial to USB cable) or to Pixhawk / Paparazzi / MotionUAV flight controllers (3.3v Logic)
8-RP-SMA Female Bulkhead Antenna connector. ATTENTION: DO NOT POWER the module without the Antenna connected
Power Requirements
The module needs an independent 1A current power supply.
General Connection Mode
Please attach a TTL Serial-USB transmission cable to the module, in order to connect it to the computer.
The default standard interface rate is 9600. The required interface baud rate can be changed according to the requirements. To do so, you need the change the configuration of the module. Please do not change the configuration if you do not know what you are doing (please do it only if you are an expert), as you may brick the module.
